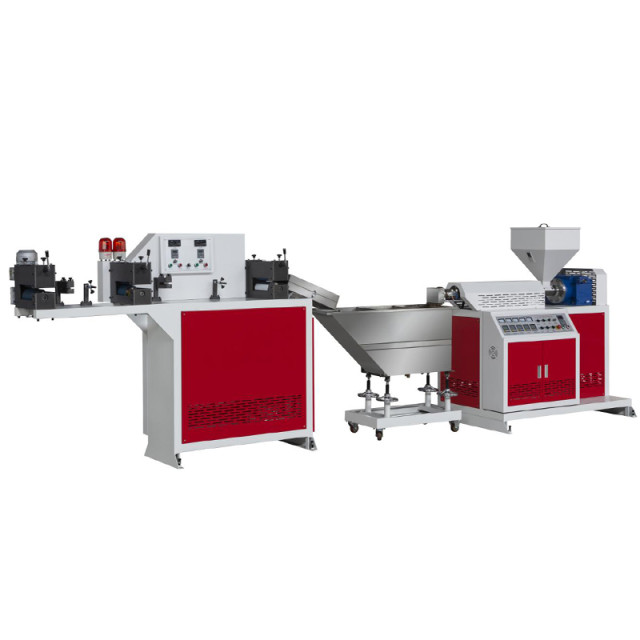

QT-S Multi-function PE packaging machine

QT-S Multi-function PE packaging machine

Purpose: This machine is a clip chain extruder designed and manufactured by our factory. It can replace clip chain molds of various shapes and is used to make various PE and PP clip chains. The machine consists of a main extruder, mold shaping, cooling water constant temperature shaping, dehydration device, air drying device, clip chain closing device, etc. The mold structure is flexible and easy to load and unload. Main features: 1. The mold used in this machine adopts advanced 90-degree extrusion. 2. The barrel and screw type used in this machine are made of high-quality alloy steel, and the surface is chrome-plated. It has strong wear resistance, high temperature resistance and deformation resistance. It is equipped with a stainless steel cold water tank, which can adjust the height at will. 3. The auxiliary machine traction adopts frequency conversion speed regulation to make the quality of the produced clip chain more stable.
Online Inquiry Contact Us

PRODUCT DETAIL

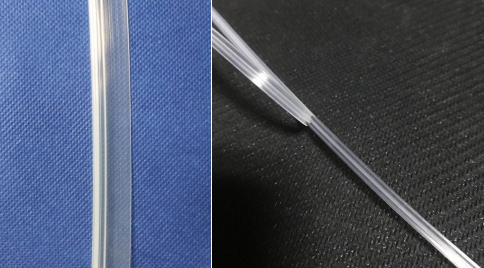

Clip chain sample pictures:

Main technical parameters:

Model

YF-45A

Material

LDPE/PP

Extrudusion Width

3-50mm

Extrudusion Speed

10-80m/min

Diameter of Screw

45mm

Draw Ratio of Screw

30:1

Main Power

5.5KW

Power of Assistant Machine

3.7KW

Heater

7.5KW

Total Power

9.2KW

Voltage

50Hz-60Hz、380V

Overall Dimension

6*1*1.8m

Main equipment configuration list:

serial number

name

Model specifications

quantity

brand

1

Main motor

5.5kw

1

Shanghai Henggong

2

Frequency converters

5.5kw

1

Shenzhen Kewo

3

Reducer

133*

1

Jiangsu Guomao

4

screw

45mm

1

Zhoushan customized

5

Other electrical appliances

*

*

CHINT Electric

6

Meter counters

*

*

Huali Electric

7

Heating sheet

*

*

Yuanfeng customized

8

Rubber rollers

*

*

Boxin roller making

9

Fans

2.2kw

1

Jing Xuan fan

10

Traction motors

0.75kw

2

Topspeed motor
