Sample bag pictures:

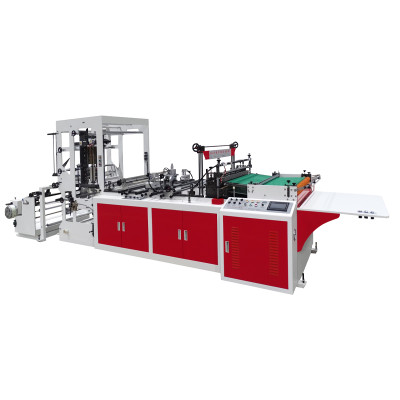

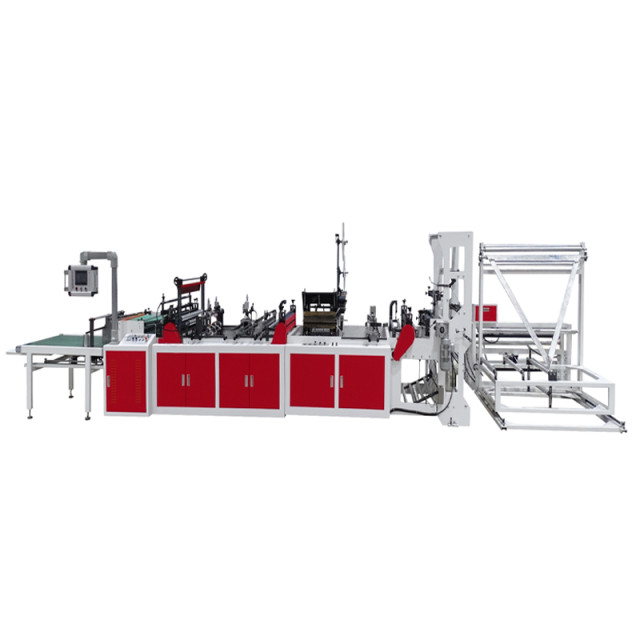

Main technical parameters of bag making machine:
|
Model |
YF-700 |
|
Production Speed |
30-120PCS/min |
|
Bag-making width |
100-550mm |
|
Bag-making Length |
50-600mm |
|
Thickness |
0.03-0.3mm |
|
Power Supply |
220V/380V |
|
Total Power |
9.5KW |
|
Overall Dimension(L*W*H) |
9000*1500*1900mm |
Main equipment configuration list:
|
serial number |
name |
Model |
Manufacturer |
quantity |
Warranty |
|
1 |
PLC (Upgraded) |
HD2024 |
CITIC Electronics |
1 |
One-year warranty |
|
2 |
Touchscreen display |
5 inches |
Taiwan Willen |
1 |
One-year warranty |
|
3 |
Main inverter |
1.5KW |
Shenzhen Kewo |
2 |
One-year warranty |
|
4 |
Outfeed frequency conversion |
0.75kw |
Shenzhen Kewo |
2 |
One-year warranty |
|
5 |
Servo motor |
2.6kw |
Wade |
2 |
One-year warranty |
|
6 |
Electric eye |
|
Julong Optoelectronics |
2 |
One-year warranty |
|
7 |
Three-phase asynchronous motor |
1.5KW |
Shanghai Henggong |
1 |
One-year warranty |
|
8 |
Geared motors |
0.75kw |
Expansion speed |
2 |
One-year warranty |
|
9 |
Geared motors |
1.5kw |
Expansion speed |
1 |
One-year warranty |
|
10 |
cylinder |
* |
Airtac |
Several |
One-year warranty |
|
11 |
Solenoid valves |
* |
Airtac |
Several |
One-year warranty |
|
12 |
Automatic tension |
|
Ming Zhiheng |
1 |
One-year warranty |
